Hi-Fi Components
ND8006
Features
| Network Audio Streaming |  |
| Spotify Connect* / Tidal* / Deezer* / others * | / / / |
| AirPlay Audio Streaming | |
| Internet radio | tunein |
| HEOS Multiroom and Streaming | |
| CD Compatibility: CD / CD-R/RW / SA-CD / WMA / MP3 / AAC | / /  / / / |
| CD-Text / SA-CD Text / ID3 Tag / WMA Meta Tag / AAC Meta data | / / / / |
| Data Disc Compatibility: DSD / WAV / ALAC | / / |
| USB input | |
| DAC operation mode: USB / Coax / Optical | / / |
| Asynchronous mode rear USB | |
| Bit-perfect transmission | |
| USB-B DSD Audio Streaming (DoP): DSD2.8 / DSD5.6 / DSD11.2 | / / |
| Signal isolator for DAC Mode operation | |
| Jitter reducer | |
| HDAM version | HDAM+HDAM SA2 |
| Power Transformer: Toroidal / El | / |
| High Grade Audio Components | |
| Customised Components | |
| Symmetric circuit layout | |
| Copper Plated Chassis | |
| Extra metal plate for chassis strengthing | (1.5mm) |
| Digital out off / Audio EX Mode | / |
| Headphone: Standard / Buffer / Current feedback | / / (HDAM SA2) |
Network
| Wi-Fi / Wired LAN | 2.4GHz, 5GHz / |
| Wi-Fi on / off mode | |
| Bluetooth on / off mode | |
| Lossy Formats: MP3 / WMA / AAC | / / |
| Lossless Formats: FLAC HD 192/24 / WAV 192/24 / ALAC 96/24 | / / / |
| Gapless Playback | (FLAC, WAV, DSD) |
| Remote APP: iDevice / Android | / |
| App control AMP/CD via Network Player | |
Other
| Selectable filter: CD / SA-CD / DAC-Mode | o/ / o(PCM Only) |
| Marantz Musical Mastering | |
| Marantz Musical Mastering Stream | |
| Marantz Musical Mastering Conversion | |
| Separated rectifier circuit for analog and digital circuitry | |
| Display: Dimmer / Off | / |
Playback
| Program Play (CD / SA-CD) | 25 / |
| Repeat | |
| Random Play | |
Input & Output
| Analogue Out (Cinch) | |
| Variable Out (Cinch) | |
| Balanced Out | |
| Digital Optical In / Out | 2 / 1 |
| Digital Coaxial In / Out | 1 / 1 |
| Sample Rate digital In | 192 kHz / 24-bit |
| Gold Plated Cinch | |
| USB Audio (Front) / Made for iPod / Made for iPhone® | |
| USB type B input for PC (back) | |
| Sample Rate USB type B In | up to DSD11.2 |
| D-Bus | |
| Headphone Out | |
| Headphone Volume Control | |
| Ethernet port | |
| IP control | |
| Flasher IN / OUT | |
| RS232 | |
Specifications
| Mechanism | JTL-101Y |
| D/A Conversion | ESS Hyper Stream |
| DAC IC | ES9016 |
| Digital Filter | ES9016 |
| Noise Shaper | ES9016 |
| Low Pass Filter stage | HDAM |
| Output Buffer | HDAM SA2 |
| Headphone amp | HDAM SA2 |
| Frequency Response (Cust.) | |
| Dynamic Range (SA) | |
| Signal to Noise Ratio (SA) | |
| Total Harmonic Distortion (SA) | |
| Channel Separation (SA) | |
| Frequency Response | 2 Hz-20 kHz |
| Dynamic Range | 100 dB |
| Signal to Noise Ratio | 110 dB |
| Total Harmonic Distortion | 0.00002 |
| Channel separation | 105 dB |
General
| Available Colors: Gold / Silver / Black / Silver-Gold | / / / |
| Metal Front Panel | |
| Remote Control | RC001PMND |
| Power Consumption in W | 42 |
| Standby Consumption in W | 0.3 |
| Auto Power off | |
| Detachable Power Cable | |
| Maximum Dimensions (W x D x H) in mm | |
| Weight in kg | 8.0 |
HD-AMP1
Features
| DAC operation mode: USB / Coax / Optical | • / • / • |
| Asynchronous mode rear USB | • |
| Bit-perfect transmission | • |
| USB-B DSD Audio Streaming: DSD2.8 / DSD5.6 / DSD11.2 | • / • / • |
| Ground isolator for DAC Mode operation | • |
| iPod / iPhone Compatible USB Input | • |
| DAC chip | SABRE ES9010K2M |
| HDAM version | HDAM SA2 |
| High Grade Audio Components | • |
| Customized Components | • |
Input & Output
| Headphone Out | • |
| Headphone Volume Control | • |
| Headphone Gain Control (low / mid / high) | • |
| Analog Input | 2 |
| Digital Optical In / Out | 2 / |
| Digital Coaxial In / Out | 1 / |
| Sample Rate digital In | 192kHz/24bit |
| Number of Speaker Terminals | 2x Marantz SPKT-1 |
| Gold Plated Cinch | • |
| Front USB | • |
| USB type B input for Computer (back) | • |
| Asynchronous mode rear USB | • |
| Sample Rate USB type B In | 384kHz/32bit |
| USB-B DSD Audio Streaming: DSD2.8 / DSD5.6 / DSD11.2 | • / • / • |
| D-Bus | • |
Others
| Power Output (8 / 4 Ohm RMS) | 35W / 70W |
| Frequency Response | 20 Hz-50 kHz |
| Signal to Noise Ratio | 105 dB |
| Total Harmonic Distortion | 0,05% |
General
| Available Colors | Black |
| Remote Control | RC002HD |
| Power Consumption in W | 55 |
| Standby Consumption in W | 0.3 |
| Auto Power off | • |
| Detachable Power Cable | • |
| Maximum Dimensions (W x D x H) in inches | 12.0 x 13.9 x 4.2 |
| Weight in lbs | 12.8 |
HD-DAC1
Features
| DAC operation mode: USB / Coax / Optical | • / • / • |
| Asynchronous mode rear USB | • |
| Bit-perfect transmission | • |
| USB-B DSD Audio Streaming: DSD2.8 / DSD5.6 | • / • |
| Ground isolator for DAC Mode operation | • |
| iPod ®/ iPhone® compatible USB input | • |
| DAC chip | CS4398 |
| Jitter reducer | • |
| HDAM version | HDAM+HDAM SA2 |
| High Grade Audio Components | • |
| Customized Components | • |
Input & Output
| Headphone Out | • |
| Headphone Volume Control | • |
| Headphone Gain Control (low / mid / high) | • |
| Analog Input | 1 |
| Analog Out (fix / variable) | • / • |
| Digital Optical In / Out | 2 / |
| Digital Coaxial In / Out | 1 / |
| Sample Rate digital In | 192kHz/24bit |
| Gold Plated Cinch | • |
| Front USB | • |
| USB type B input for Computer (back) | • |
| Asynchronous mode rear USB | • |
| Sample Rate USB type B In | 192kHz/24bit |
| USB-B DSD Audio Streaming: DSD2.8 / DSD5.6 | • |
| D-Bus | • |
Specifications
| Frequency response | 2 Hz-20 kHz |
| Signal to Noise Ratio | 106 dB |
| Total Harmonic Distortion | 0,0012% |
| Channel separation | 100 dB |
| Headphone Power | 800mW / 32 ohm |
General
| Remote Control | RC001HD |
| Standby Consumption in W | 0.3 |
| Auto Power off | • |
| Detachable Power Cable | • |
| Maximum Dimensions (W x D x H) in inches | 9.84 x 10.63 x 3.54 |
| Weight in lbs. | 11.02 |
SA8005
Features
| Disc Capacity | 1 |
| Playback Formats | Disc: SA-CD, CD, CD-R/RW(CD-DA/MP3/WMA, AAC), USB-A: MP3/WMA/WAV/AAC/iPod/iPhone/iPad, USB-B: PCM up to 192kHz/24bit, DSD 2.8 & 5.6 Mhz |
| HDAM | HDAM + HDAM-SA2 |
| Current Feedback Analog Stage | No |
| Power Transformer | Toroidal |
| Zero-Impedance Plate | No |
| Double Layerd Bottom Plates | No |
| Audio DAC | Cirrus Logic CS4398 |
| Display On/Off | No |
| Selectable Filters | No |
| SA-CD/CD Text | No |
Input & Output
| Analog L&R Out | 1 (Variable/Fixed Selectable) |
| Headphone Out | 1 (with Level) |
| Digital Out | Coax: 1, Opt: 1 |
| Digital In | Coax: 1, Opt: 1 |
| Other In/Out | USB-A: 1(Front), USB-B: 1(Rear) |
OTHER
| External control | No |
| D-Bus Remote (RC-5) In/Out | 1/1 |
Specifications
| Format | 1-Bit DSD |
| Sampling Frequency | 2.8224MHz |
| Dynamic Range | 106 dB (Audible range) |
| Frequency response | 2 Hz – 60 kHz (–3 dB) |
| THD | 0.0012 % (1 kHz, Audible range) |
CD Audio
| Format | No |
| THD | 0.0018 % (1 kHz) |
| Sampling Frequency | 44.1kHz |
| Dynamic Range | 101dB |
| Frequency response | 2 Hz – 20 kHz (±0.5 dB) |
General
| Front Panel | Aluminum/Glass-reinforced resin |
| Remote Control | Device Remote with Marantz Amp. Basic Control Function |
| Power Requirement | AC 120V 60Hz |
| Power Consumption | 29W (Standby: 0.2W) |
| Dimensions W x H x D (Inchs) | 17.3″ x 4.2″ x 13.43″ |
| Weight (lbs) | 17.64 lbs |
NA6005
Features
DAC operation mode: USB / Coax / Optical / / •Wi-Fi Sharing / WPS• / •Internet radio•Windows PlayTo / Windows 8/RT compatible• / / USB Audio (Front) / Made for iPod / Made for iPhone®• / • / •Lossy formats MP3 / WMA / AAC• / • / •Gapless Playback• (FLAC, WAV, ALAC, DSD, AIFF)FM / AM Tuner• / •Power Transformer: Toroidal / El / •
| Streaming audio from PC | • |
| Wi-Fi / Bluetooth | • / • |
| DSD Audio Streaming (DoP): DSD2.8 / DSD5.6 | • / • |
| AirPlay Audio Streaming | • |
| vTuner / Spotify Connect*/Pandora*/ SiriusXM* | • / •/ • / • |
| DLNA Certified | • (v1.5) |
| Lossless formats: DSD / FLAC192/24 / ALAC96/24 / WAV192/24 / AIFF192/24 | • / • / • / • / • |
| Remote APP: iDevice / Android™ | • / • |
| HDAM version | HDAM + HDAM SA2 |
| High Grade Audio Components | • |
| Symmetric circuit layout | • |
Input & Output
analog Out1Digital Inputs: Coaxial / Optical / •Sample Rate digital In192 kHz / 24-bit
| iPod / iPhone compatible USB (front) | • |
| Ethernet port | • |
| Digital Outputs: Coaxial / Optical | / • |
| Marantz Remote Bus | • |
| Flasher In / IP control | • |
Others
Headphone Buffer• (HDAM-SA2)
| Extra metal plate for chassis strengthing | • |
| Display: Dimmer / Off | • / • |
Specifications
DAC ICCS4398Noise ShaperCS4398Output BufferHDAM SA2
| D/A Conversion | Multi-bit, Delta-Sigma |
| Digital Filter | CS4398 |
| Low Pass Filter stage | HDAM SA2 |
| Headphone amp | HDAM SA2 |
General
Metal Front Panel•Power Consumption in W35Detachable Power Cable•Weight in lbs.13.23
| Available Colors: Black | • |
| Remote Control | RC004NA |
| Standby Consumption in W | 0.4 |
| Maximum Dimensions (W x D x H) in inches | 17.32 x 14.57 x 4.13 |
PM8006
Features
| Channels | 2 |
| Current Feedback Topology | |
| Full balanced circuitry architecture | |
| Double Mono Power Amp construction | |
| Phono EQ: Standard / Class A / Constant Current Feedback | / / |
| Digital in: USB-B / optical / coaxial / USB-A | / / / |
| Sample Rate digital In | |
| USB-A: DSD / WAV / FLAC / AIFF / ALAC | |
| USB-B DSD Audio Streaming (DoP): DSD2.8 / DSD5.6 | |
| USB-B PCM sample rate | |
| DAC chip | |
| Asynchronous mode rear USB | |
| Bit-perfect transmission | |
| Ground isolator for DAC Mode operation | |
| Bluetooth / aptX / NFC | |
| Streaming audio from PC | |
| Wi-Fi / Wired LAN | |
| Internet radio | |
| AirPlay Audio Streaming | |
| Windows Play to | |
| vTuner / Spotify* | |
| DLNA Certified | |
| DSD-Audio network streaming | |
| Lossy Formats: MP3 / WMA / AAC | |
| Lossless formats: DSD / FLAC HD 192/24 / ALAC 96/24 / WAV 192/24 / AIFF | |
| Gapless Playback | |
| Remote APP: iDevice / Android | |
| Analog Mode | |
| HDAM version | SA3, SA2 |
| Power Transformer: Toroidal / El | / |
| High Grade Audio Components | |
| Customised Components | |
| Symmetric PCB Layout | |
| Aluminium extrusion heat sink | |
| Copper Plated Chassis | |
| Tri Tone Control (Bass / Mid / Treble) | |
| Balance / Bass / Treble / Loudness | / / / |
Others
| Marantz Musical Digital Filtering | |
| Linear Drive Power Supply | |
| Liniear volume control | |
| BI-AMP and Multichannel option | |
| Shottky diodes | |
| Input buffer amp (all inputs / CD only) | / |
| System block shielding: Copper / metal / none | / / |
| Double Layer Bottom Plate | triple |
| Low Noise OELD display | |
| Low noise LCD display | |
| Source Direct | |
| Power Amp direct | |
| 5mm aluminium top plate | |
Input & Output
| Audio Inputs | 6 |
| Digital in: USB-B / optical / coaxial / USB-A | / / / |
| Phono Input: MM / MC | / |
| Audio Outputs | 1 |
| Balanced In / Out | / |
| Pre-out / Main-in | 1 / |
| Power Amp Direct IN | |
| Gold Plated Cinch | |
| Speaker A / B | |
| Speaker Terminal | Marantz SPKT-1+ |
| Number of terminals | 4 |
| D-Bus | |
| Floating Control Bus (3.5 mm mono jack x 2) | |
| Headphone Out | |
| Headphone Gain Control (low / mid / high) | |
Specifications
| Power Output (8 / 4 Ohm RMS) | 70 W / 100 W |
| Frequency response | 5 Hz-100 kHz |
| Total Harmonic Distortion | 0.02 % |
| Damping Factor | 100 |
| Input Sensitivity: MM | 2 mV / 47 kOhm |
| Input Sensitivity: MC | |
| Signal to Noise Ratio: MM/MC | 87 dB / |
| Input Sensitivity: High level | 200 mV / 20 kOhm |
| Input Sensitivity: Balanced High level | |
| Signal to Noise Ratio: High level | 106dB(2V input) |
| Input Sensitivity: Power Amp Direct IN | 1.6V / 15 kOhm |
| Signal to Noise Ratio: Power Amp Direct IN | 125 dB |
General
| Available Colors: Gold / Silver / Black / Silver-Gold | / / / |
| Metal Front Panel | |
| Power Consumption in W | 220 |
| Standby Consumption in W | 0.2 |
| Auto Power off | |
| Detachable Power Cable | |
| Remote Control | RC001PMND |
| System Remote Function | |
| Maximum Dimensions (W x D x H) in mm | 440 x 379 x 128 |
| Weight in kg | 12.0 |
PM8005
Others
| External control | No |
| D-Bus Remote (RC-5) In/Out | 1/1 |
| AC Outlets (Switched/Unswitched) | No |
Specifications
| THD | 0.02% (20Hz – 20kHz, 2 channel driven, 8 ohms load) |
| Input Sensitivity/Impeance | PHONO:MM:2mV/47k ohms, LINE:200mV/20k ohms |
| Frequency response | 5Hz – 100kHz ±3dB (CD, 1W, 8 ohms load) |
| S/N Ratio | PHONO:MM:87dB, LINE:106dB, DIRECT IN: 125dB |
| Number of Channels | 2 |
| Output Power | 70W (8 ohms), 100W (4 ohms) |
| HDAM | Yes |
| Power Transformer | Shielded Toroidal Transformer |
| Current Feedback Amplifier | Yes |
| Speaker Terminal | Marantz SPKT-1 |
| Tone Control | (Bass: 50Hz ±10dB, Mid: 900Hz ±6dB, Treble: 15kHz ±10dB) |
| Source Direct | Yes |
| Speaker A/B | Yes |
General
| Metal Front Panel | |
| System Remote Control | RC024SR |
| Pre-Programmed / Learnable / LCD Display | / / |
| Power Consumption in W | 650 |
| Power Consumption No-Sound (ECO …on/off) in W | 45 W / 75 W |
| Standby Consumption in W | 0.2 |
| CEC Standby Consumption in W | 0.5 |
| Network Standby Consumption in W | 2.7 |
| Network Control On Consumption in W | |
| Maximum Dimensions Antenna:Horizontal:(W x D x H) in inches Antenna:Vertical :(W x D x H) in inches W/o Antenna:(W x D x H) in inches |
17.3 x 13.6 x 6.3 (17.3 x 13.6 x 9.1) |
| Weight in lbs. | 22.1 |
PM7005
Feactures
| Channels | 2 |
| Current Feedback Topology | • |
| Phono EQ: Standard | • |
| HDAM version | SA3, SA2 |
| Digital in: USB-B / optical / coaxial | • / • / • |
| Asynchronous mode rear USB | • |
| USB-B DSD Audio Streaming | • (DSD2.8 & DSD5.6) |
| Signal isolator for DAC Mode operation | • |
| Analog Amp Mode | • |
| DAC chip | CS4398 |
| High Grade Audio Components | • |
| Customized Components | • |
| Aluminium extrusion heat sink | • |
| Balance / Bass / Treble / Loudness | • / • / • / |
Others
| Linear Drive Power Supply | • |
| Schottky diodes | • |
| Solid Heat Sinks | • |
| Source Direct | • |
| Standby Mode | • |
Inputs/Outputs
| Digital in: USB-B / optical / coaxial | • / • / • |
| Audio Inputs | 5 |
| Phono Input: MM | • |
| Audio Outputs | 1 |
| Gold Plated Cinch | • |
| Speaker Terminal | Marantz SPKT-1 |
| Number of Speaker Terminals | 2 |
| D-Bus | • |
| Headphone Out | • |
Specifications
| Power Output (8 / 4 Ohm RMS) | 60 W / 80 W |
| Frequency response | 5 Hz-100 kHz |
| Total Harmonic Distortion | 0.02 % |
| Damping Factor | 100 |
| Input Sensitivity: MM | 2 mV / 47 kOhm |
| Signal to Noise Ratio: MM | 85 dB |
| Input Sensitivity: High level | 200 mV / 20 kOhm |
| Signal to Noise Ratio: High level | 104dB (2V input) |
General
| Available Colors: Black | • |
| Metal Front Panel | • |
| Power Consumption | 170 W |
| Standby Consumption | 0.2 W |
| Auto Power off | • |
| Detachable Power Cable | • |
| Remote Control | RC003PMSA |
| System Remote Function | • |
| Maximum Dimensions (W x D x H) | 17.32 x 14.92 x 4.92 in. |
| Weight | 22.05 lb. |
PM6006
Feactures
| Channels | 2 |
| Current Feedback Topology | • |
| Phono EQ: Standard | • |
| HDAM version | SA3, SA2 |
| Digital in: USB-B / optical / coaxial | • / • / • |
| Asynchronous mode rear USB | • |
| USB-B DSD Audio Streaming | • (DSD2.8 & DSD5.6) |
| Signal isolator for DAC Mode operation | • |
| Analog Amp Mode | • |
| DAC chip | CS4398 |
| High Grade Audio Components | • |
| Customized Components | • |
| Aluminium extrusion heat sink | • |
| Balance / Bass / Treble / Loudness | • / • / • / |
Others
| Linear Drive Power Supply | 0 |
| Shottky diodes | 0 |
| Copper Plated Screws | 0 |
| Standby Mode |
Inputs/Outputs
| Audio Inputs | 5 |
| Digital In: Optical / Coaxial | 2 / |
| Phono Input: MM | 0 |
| Audio Outputs | 1 |
| Gold Plated Cinch | 0 |
| Speaker A / B | 0 |
| Speaker Terminals | Metal (Gold) Screw |
| Number of terminals | 4 |
| D-Bus | 0 |
| Headphone Out | 0 |
| Headphone Volume Control | 0 |
Specifications
| Power Output (8 / 4 Ohm RMS) | 45 W / 60 W |
| Frequency response | 10 Hz-70 kHz |
| Total Harmonic Distortion | 0.08 % |
| Damping Factor | 100 |
| Input Sensitivity | MM 2.2 mV / 47 kOhm |
| Signal to Noise Ratio | MM 83 dB |
| Input Sensitivity | High Level 200 mV / 20 kOhm |
| Signal to Noise Ratio | High Level 102dB (2V input) |
General
| Available color: Black | 0 |
| Metal Front Panel | 0 |
| Power Consumption | 395 W |
| Standby Consumption | 0.3 W |
| Auto Power off | 0 |
| Detachable Power Cable | 0 |
| Remote Control | RC003PMCD |
| System Remote Function | 0 |
| Maximum Dimensions (W x D x H) | 17.3 x 14.6 x 4.1 |
| Weight | 17.2 lbs |
PM5005
Feature
| Channels | 2 |
| Current Feedback Topology | • |
| Phono EQ: Standard | • |
| HDAM version | SA3, SA2 |
| EI Power Transformer | • |
| High Grade Audio Components | • |
| Balance / Bass / Treble / Loudness | • / • / • / • |
Others
| Linear Drive Power Supply | • |
| Source Direct | • |
| Standby Mode | • |
Inputs/Outputs
| Audio Inputs | 6 |
| Phono Input: MM | • |
| Audio Outputs | 2 |
| Gold Plated Cinch | • |
| Speaker A / B | • |
| Speaker Terminal | Transparent, Screw type |
| Number of terminals | 4 |
| D.Bus | • |
| Headphone Out | • |
Specifications
| Power Output (8 / 4 Ohm RMS) | 40 W / 55 W |
| Frequency response | 10 Hz-50 kHz |
| Total Harmonic Distortion | 0.01 % |
| Damping Factor | 100 |
| Input Sensitivity: MM | 2.2 mV / 47 kOhm |
| Signal to Noise Ratio: MM | 83 dB |
| Input Sensitivity: High level | 200 mV / 20 kOhm |
| Signal to Noise Ratio: High level | 103dB (2V input) |
General
| Metal Front Panel | • |
| Power Consumption | 350W |
| Standby Consumption | 0.3 W |
| Auto Power off | • |
| Detachable Power Cable | • |
| Remote Control | RC002PMCD |
| System Remote Function | • |
| Maximum Dimensions (W x D x H) in inches | 17.32 x 14.57 x 4.13 in. |
| Weight in lbs. | 14.77 lbs. |
CD6006
Feature
| Channels | 2 |
| Current Feedback Topology | • |
| Phono EQ: Standard | • |
| HDAM version | SA3, SA2 |
| EI Power Transformer | • |
| High Grade Audio Components | • |
| Balance / Bass / Treble / Loudness | • / • / • / • |
Others
| Separated rectifier circuit for analog and digital circuitry | 0 |
| Display: Dimmer / Off | / |
Playback
| Program Play (CD) | 25 |
| Repeat | 0 |
| Random Play | 0 |
Inputs/Outputs
| Analog Out (Cinch) | 2ch |
| Digital Optical Out | 1 |
| Digital Coaxial Out | 1 |
| Gold Plated Cinch | 0 |
| D-Bus | 0 |
| Headphone Out | 0 |
| Headphone Volume Control | 0 |
Specifications
| D/A Conversion | Multi-bit, Delta-Sigma |
| DAC IC | CS4398 |
| Digital Filter | CS4398 |
| Noise Shaper | CS4398 |
| Low Pass Filter stage | HDAM |
| Output Buffer | HDAM SA2 |
| Headphone amp | HDAM-SA2+Buffer |
| Frequency Response | 2 Hz-20 kHz |
| Dynamic Range | 100 dB |
| Signal to Noise Ratio | 110 dB |
| Total Harmonic Distortion | 0.002% |
| Channel separation | 98 dB |
General
| Available color: Black | 0 |
| Metal Front Panel | 0 |
| Remote Control | RC003PMCD |
| Power Consumption | 32 W |
| Standby Consumption | 0.3 W |
| Auto Power off | |
| Detachable Power Cable | 0 |
| Maximum Dimensions (W x D x H) | 17.3 x 13.5 x 4.1 inches |
| Weight | 14.3 lbs |
CD5005
Feature
| Marantz HDAM | HDAM-SA2 |
| D/A Converter | CS4392 |
| Power Transformer | EI Core |
| High performance audio grade capacitors | (Multi-bit, Delta-Sigma) |
| Current-buffered headphone output | Yes |
| Audio EX mode | Yes |
| Display Off | Yes |
| CD Text / ID3 tags | Yes |
| Quick Replay | 5-60 sec. variable |
| Random Play | Yes |
| Repeat Play | All/1/A-B |
| Recording Edit Mode | Yes |
| AMS (Auto Music Scan) Mode | Yes |
| Peak Search | No |
| Pitch Control | Yes |
| Headphone level Control | Yes |
Others
| Separated rectifier circuit for analog and digital circuitry | 0 |
| Display: Dimmer / Off | / |
Inputs/Outputs
| Analog L&R Out | 2 channel |
| Digital Optical Out | 1 |
| Digital Coaxial Out | 1 |
| Headphone Out | 1 |
OTHER
| Marantz D-Bus Remote (RC-5) In / Out | 1 / 1 |
| External control | Flasher In: 1 |
| AC Inlet and Detachable Power Cord | Yes (IEC320) |
Specifications
AUDIO SECTION
| Disc Capacity | 1 |
| Number of Channels | 2 |
| Playback Disc | CD, CD-R, CD-RW |
| Playback Formats | CD-DA(16-Bit Linear PCM), MP3, WMA (does NOT support WMA-DRM files) |
| Sampling Frequency | CD:44.1kHz, MP3/WMA:32, 44.1, 48kHz |
| Frequency response | 2Hz-20kHz |
| Dynamic Range | 100dB |
| S/N Ratio | 110dB |
| Channel separation | 98dB |
| Total Harmonic Distortion | 0.002% (1kHz) |
| Analog Audio Output Level | 2.25V rms, Stereo |
| Headphone Output Level | 18 mW/32 ohms (variable maximum) |
| Digital Coaxial Out | 0.5 Vp-p, 75 ohms |
| Digital Optical Out | -19dB |
General
| Color | Black |
| Front Panel | Metal |
| Remote Control | Simple |
| Power Requirement | AC120V 60Hz |
| Power Consumption | 14W |
| Standby Consumption | 0.3W |
| Dimensions W x H x D (Inchs) | 17.3″ x 4.1″ x 13.3″ |
| Weight (lbs) | 11 lbs |
| Option Rack Mount Kit | RMK5003PCD |
TT42P
Overview
You want to jump into the vinyl records craze, but many of today’s AV receivers and integrated amplifiers lack a proper phono input. That’s why Marantz offers the TT42P, a special version of the TT42 with a built-in phono preamp. The TT42P does not require a dedicated phono input; simply plug it into any line level audio input (the same type of input you would use for a compact disc player). The turntable comes ready-to-play with a pre-installed cartridge, so you’ll be spinning records moments after unboxing. A low-coloration tone arm, DC servo motor, and belt drive ensure pristine, interference-free playback.
Vinyl Record Playing with Modern Convenience
Have you noticed the resurgence of vinyl record sales in recent years? Fueled by the fact that many treasured albums have not been issued in digital format, and with newer artists continuing to release music on vinyl, turntables are popping up in living rooms all over the world.
The Marantz TT42P Turntable combines old school record playing with convenient, high-performance features. The turntable is fully automatic: with a push of the “play” button, the tone arm precisely lifts itself onto the record groove, saving you the trouble of having to manually position the stylus. Once playback has concluded, the tone arm safely returns to its resting position without scuffing your record.
Built-In Phono Preamp for Easy Connectivity
Because many audio receivers do not feature a dedicated phono input, the TT42P comes with a built-in phono input circuitry. This allows you to plug the TT42P into any line level audio input (the same type of input you would use for a compact disc player) for easy, plug-and-play enjoyment of your vinyl collection.
A Quality Mechanism for High-Fidelity Playback
The TT42P turntable is outfitted with a low-coloration tone arm that resists resonance for a clear, balanced sound. A high quality, moving magnet cartridge is preset at the factory for proper tracking and smooth response. In addition, the turntable’s DC servo belt drive keeps the motor running at a constant speed for optimum performance. The TT42P is designed to produce a stunning, nuanced, and distortion-free audio performance.
A version of the TT42P without a phono preamp, the TT42, is also available and works with multi-channel receivers that feature a dedicated phono input.
The Marantz TT42P Turntable comes complete with a clear plastic dust cover and is backed by a three-year limited warranty, subject to the full warranty.
Package Contents
TT42P turntable, plastic dust cover, and user’s manual.

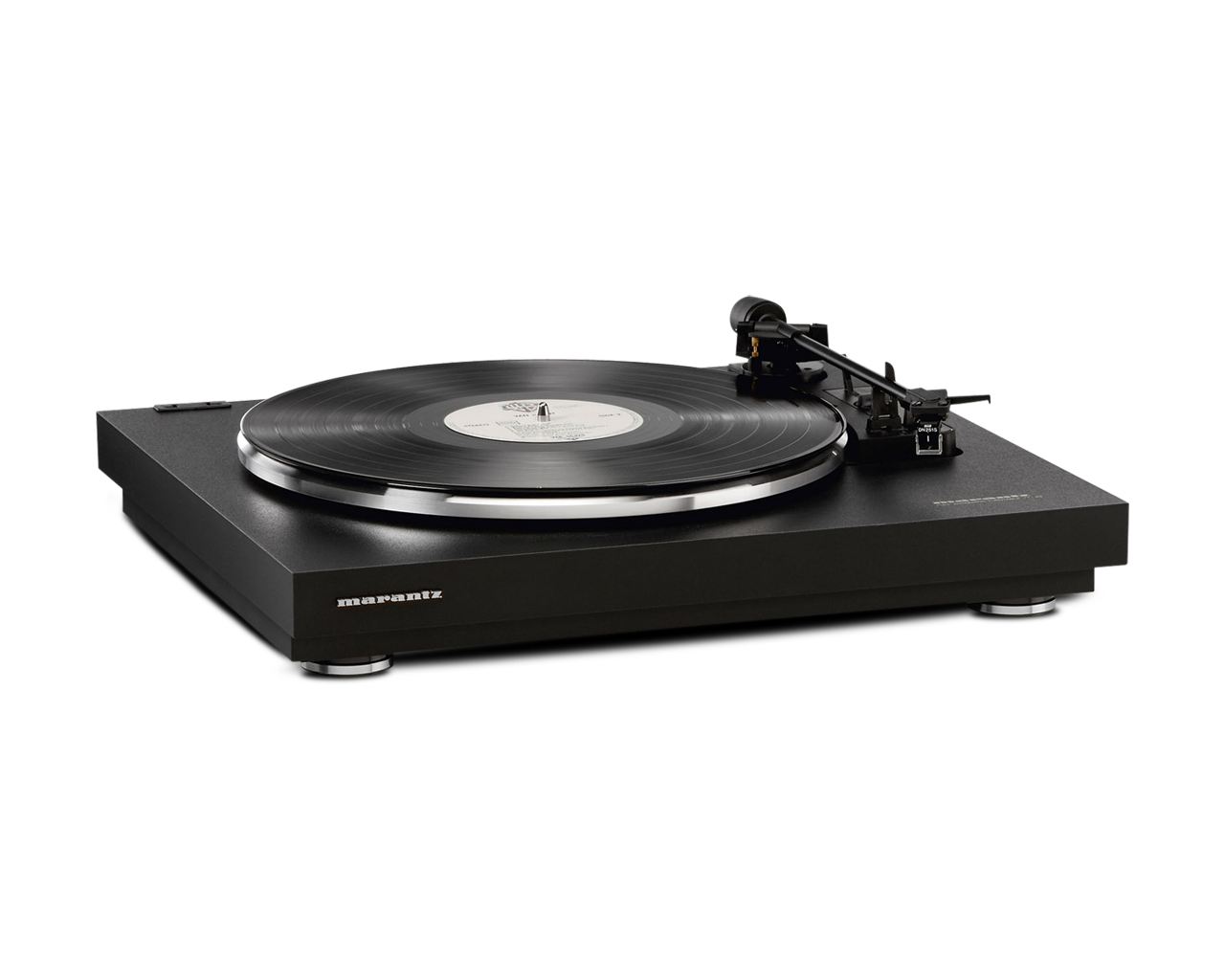

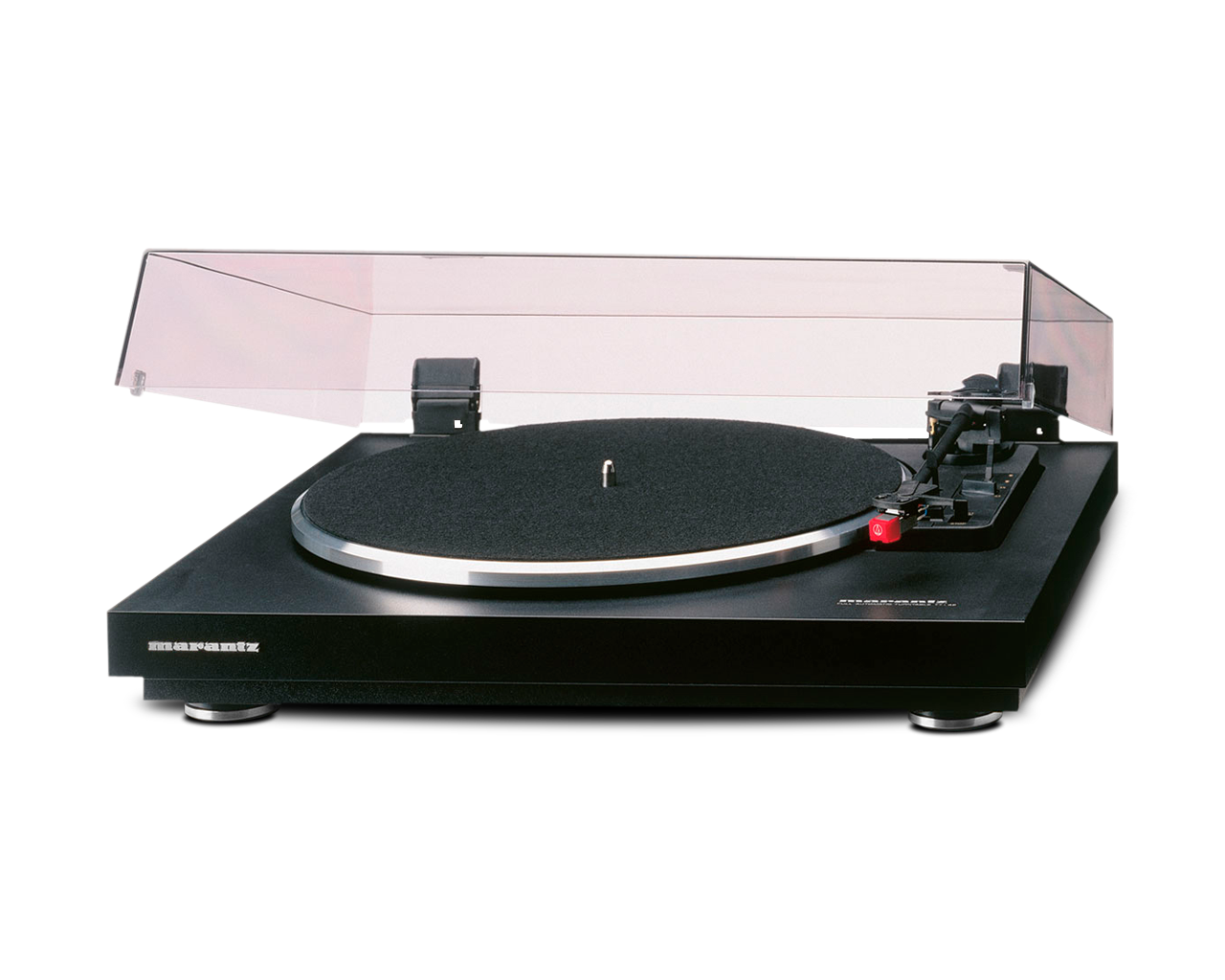

TT42
Overview
Combining classic turntable design with modern audio technologies, the Marantz TT42 Turntable plays back your vinyl collection with stunning audio quality. This turntable features a fully automatic mechanism that plays records with a touch of a button. A low-coloration tone arm, DC servo motor, and belt drive ensure pristine, interference-free playback.
Vinyl Record Playing with Modern Convenience
Have you noticed the resurgence of vinyl record sales in recent years? Fueled by the fact that many treasured albums have not been issued in digital format, and with newer artists continuing to release music on vinyl, turntables are popping up in living rooms all over the world.
The Marantz TT42 Turntable combines old school record playing with convenient, high-performance features. The turntable is fully automatic: with a push of the “play” button, the tone arm precisely lifts itself onto the record groove, saving you the trouble of having to manually position the stylus. Once playback has concluded, the tone arm safely returns to its resting position without scuffing your record.
A Quality Mechanism for High-Fidelity Playback
The TT42 turntable is outfitted with a low-coloration tone arm that resists resonance for a clear, balanced sound. A high quality, moving magnet cartridge is preset at the factory for proper tracking and smooth response. In addition, the turntable’s DC servo belt drive keeps the motor running at a constant speed for optimum performance. The TT42 is designed to produce a stunning, nuanced, and distortion-free audio performance.
A version of the TT42 with a phono preamp, the TT42P, which features built-in phono input circuitry, is also available to accommodate multi-channel receivers that lack a proper phono input.
The Marantz TT42 Turntable comes complete with a clear plastic dust cover and is backed by a three-year limited warranty, subject to the full warranty .
Package Contents
TT42 turntable, plastic dust cover, and user’s manual.
HD-CD1
Feactures
| CD / CD-R/RW / WMA / MP3 / AAC | / / / / |
| CD-Text / SA-CD Text / ID3 Tag / WMA Meta Tag / AAC Meta data | / / / / |
| Data Disc Compatibility: DSD / WAV / ALAC | / / |
| iPod / iPhone Compatible USB Input | |
| DAC operation mode: USB / Coax / Optical | / / |
| Asynchronous mode rear USB | |
| Bit-perfect transmission | |
| USB-B DSD Audio Streaming (DoP): DSD2.8 / DSD5.6 | |
| Signal isolator for DAC Mode operation | |
| HDAM version | SA2 |
| Power Transformer: Toroidal / El | / |
| High Grade Audio Components | |
| Customised Components | |
| Symmetric circuit layout | |
| Copper Plated Chassis | |
| Extra metal plate for chassis strengthing | |
| Digital out off / Audio EX Mode | / |
| Headphone: Standard / Buffer / Current feedback | / (HDAM-SA2) / |
Others
| Selectable filter: CD / SA-CD / DAC-Mode | / / |
| Marantz Musical Mastering | |
| Marantz Musical Mastering Stream | |
| Marantz Musical Mastering Converter | |
| Zero Impedance Matching joint (copper) | |
| Separated rectifier circuit for analog and digital circuitry | |
| Display: Dimmer / Off | / |
| Low noise LCD display | |
| 5mm Aluminum top cover | |
Inputs/Outputs
| Mechanism | CJDKT690 |
| D/A Conversion | Multi-bit, Delta-Sigma |
| DAC IC | CS4398 |
| Digital Filter | CS4398 |
| Noise Shaper | CS4398 |
| Low Pass Filter stage | HDAM |
| Output Buffer | HDAM SA2 |
| Headphone amp | HDAM-SA2+Buffer |
SA-CD AUDIO
| Frequency Response (Cust.) | |
| Dynamic Range (SA) | |
| Signal to Noise Ratio (SA) | |
| Total Harmonic Distortion (SA) | |
| Channel Separation (SA) | |
CDDA AUDIO
| Frequency Response | 20 Hz-20 kHz |
| Dynamic Range | 100 dB |
| Signal to Noise Ratio | 110 dB |
| Total Harmonic Distortion | 0.002% |
| Channel separation | 98 dB |
Specifications
| Analogue Out (Cinch) | 2ch |
| Balanced Out | |
| Digital Optical In / Out | / 1 |
| Digital Coaxial In / Out | / 1 |
| Sample Rate digital In | |
| Gold Plated Cinch | |
| USB Audio (Front) / Made for iPod / Made for iPhone® | / / |
| USB type B input for PC (back) | |
| Asynchronous mode rear USB | |
| Sample Rate USB type B In | |
| USB-B DSD Audio Streaming (DoP): DSD2.8 / DSD5.6 | |
| D-Bus | |
| Headphone Out | |
| Headphone Volume Control | |
General
| Available color: Black | |
| Metal Front Panel | |
| Remote Control | RC003HD |
| Power Consumption in W | 14 |
| Standby Consumption in W | 0.3W or less |
| Auto Power off | |
| Detachable Power Cable | |
| Maximum Dimensions (W x D x H) in inches | 12 x 12.3 x 4.3 |
| Weight in lbs | 12.6 |
